Plugin Settings

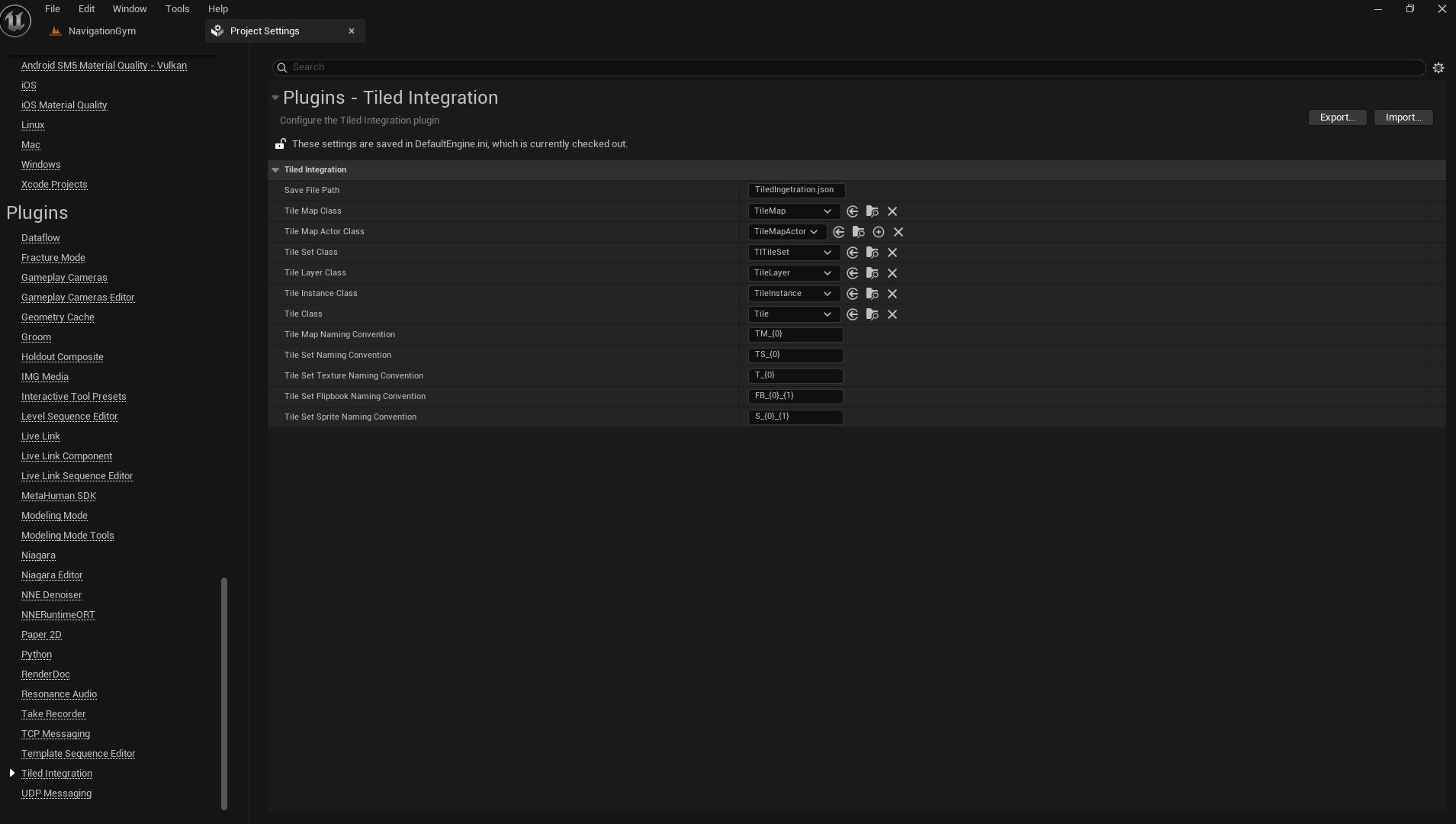

You can configure some aspects of the plugin to adjust it better to your needs. The configuration can be found in Edit > Project Settings > Plugins > Tiled Integration. Here are the options that you can configure:

• Save File Path: Where the plugin save file will be located relative to your project directory. By default it will be located in the root folder of your project. Note: If you change the location in the settings you must also manually change the file location accordingly and restart the engine.

• Tile Map Class: The class that will be used when importing a Tile Map asset. If you want to use your own class it must inherit from UTITileMap. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Map Instance Class: The class that will be used when creating a Tile Map asset. If you want to use your own class it must inherit from UTITileMapInstance. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Map Actor Class: The class that will be used when instancing a Tile Map asset into a level. If you want to use your own class it must inherit from ATITileMapActor. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Set Class: The class that will be used when importing a Tile Set asset. If you want to use your own class it must inherit from UTITileSet. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Layer Class: The class that will be used when importing a Tile Layer from a Tile Map asset. If you want to use your own class it must inherit from UTITileLayer. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Layer Class: The class that will be used when creating a Tile Layer from a Tile Map asset. If you want to use your own class it must inherit from UTITileLayerInstance. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Map Tile Class: The class that will be used to represent a single tile within a Tile Map. If you want to use your own class it must inherit from UTITileMapTile. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Map Tile Instance Class: The class that will be used to create a tile instance from a Tile Map asset. If you want to use your own class it must inherit from UTITileMapTileInstance. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Set Tile Class: The class that will be used to represent a tile within a Tile Set. If you want to use your own class it must inherit from UTITileSetTile. Note: Changing this after importing assets is not supported, please remove all imported assets before changing it and reimport them afterwards.

• Tile Map Naming Convention: The naming convention of the Tile Map assets generated when importing, where {0} is the name of the original Tile Map file.

• Tile Set Naming Convention: The naming convention of the Tile Set assets generated when importing, where {0} is the name of the original Tile Set file.

• Tile Set Texture Naming Convention: The naming convention of the Tile Set Textures assets generated when importing, where {0} is the name of the original Texture file.

• Tile Set Flipbook Naming Convention: The naming convention of the Tile Set Flipbooks assets generated when importing, where {0} is the name of the Tile Set file and {1} is the ID of the Tile.

• Tile Set Sprite Naming Convention: The naming convention of the Tile Set Sprites assets generated when importing, where {0} is the name of the Tile Set file and {1} is the ID of the Tile.
